Specifications

System
SpecificationValue
ModelEx Factory // Number of Receiver Channels 18 // Type of Receiver Boards PCI_RX16

Notes from the listing

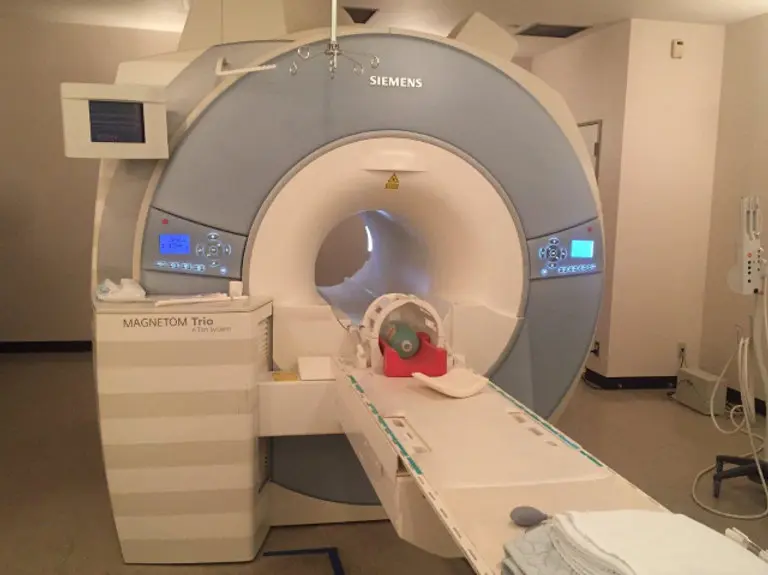

  • Siemens Trio 3T MRI system
  • Model 2007
  • Still installed unit – From Australia – Available Third week of September 2017
  • MR configuration report shows RF channels = 18
  • Measurement Settings
  • Number of Receiver Boards 2 ( 2 x 9 channels ) Transmitter TRA3

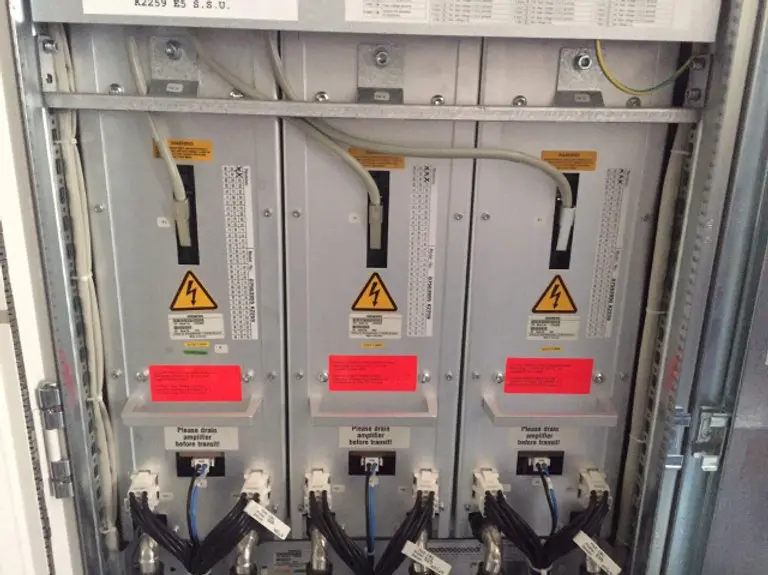

  • Gradient Power Amplifier K2259/2000V/650A/TQ Gradient Coil AS092
  • Stimulation Monitor SAFE MODEL SAR guide line IEC RFPA K2180W35
  • Advanced SHIM Option Installed PMU Installed Patient Table
  • K2253_WHOLEBODY Patient Table Range 2635 Table Trolley Installed
  • Second Lightmarker None Cooling System SEP Unit Type Stationary Number
  • of ERDU Buttons 2 Comfort Kit Installed
  • Gradients = TQ engine
  • Tab. 1 Gradient options and Performance values Performance TQ System
  • type Trio Max. gradient field (X/Y/Z) 40/40/45 mT/m Min. rise time
  • 200 μsec.
  • (0 – 40 mT/m)
  • Slew rate 200 T/m/s
  • Max. gradient
  • current 625 A
  • Max. voltage
  • (across Gradient
  • Coil)
  • 2000 V
  • Gradient Coil AS 092
  • Measurement Settings
  • System Variant Ex Factory
  • Number of Receiver Channels 18
  • Type of Receiver Boards PCI_RX16
  • Number of Receiver Boards 2
  • Transmitter TRA3
  • Gradient Power Amplifier K2259/2000V/650A/TQ
  • Gradient Coil AS092
  • Stimulation Monitor SAFE MODEL
  • SAR guide line IEC
  • RFPA K2180W35
  • Advanced SHIM Option Installed
  • PMU Installed
  • Patient Table K2253_WHOLEBODY
  • Patient Table Range 2635
  • Table Trolley Installed
  • Second Lightmarker None
  • Cooling System SEP
  • Unit Type Stationary
  • Number of ERDU Buttons 2
  • Comfort Kit Installed
  • Coldhead Compressor Sumitomo F70
  • Inline Image Filter enabled
  • Main Coil Body
  • Available Coils
  • — I suggest we simply list 80% of them – and keep 20% for next two units –we are getting – making it evenly matched systems
  • Neck 4 // Torso 6 // Head 12 // Knee 8 // Wrist 8 // Extremity 8 ch // Foot // Spine 24 // Shoulder 4
  • Coils
  • 8Ch_FootAnkle
  • 8Ch_Knee
  • 8Ch_Wrist
  • BodyMatrix
  • FlexLarge
  • FlexSmall
  • Loop_4
  • NeckMatrix
  • PAMatrix_F
  • PAMatrix_H
  • ShoulderLarge
  • ShoulderSmall
  • SpineMatrix
  • TxRx_CP_Extremity
  • License Information
  • 1. N11BoldImaging 1.0 9-dec-2009 permanent
  • 2. N11TGSE 1.0 9-dec-2009 permanent
  • 3. N11Spectroscopy 1.0 9-dec-2009 permanent
  • 4. CAP3D_FILTER_MIP 40.100 9-dec-2009 permanent
  • 5. CAP3D_FILTER_SSD 40.100 9-dec-2009 permanent
  • 6. CAP3D_VOIMODE 40.100 9-dec-2009 permanent
  • 7. CAP3D_MAIN 40.100 9-dec-2009 permanent
  • 8. GET_WORKLIST 40.100 9-dec-2009 permanent
  • 9. N11AdvCardiac 1.0 9-dec-2009 permanent
  • 10. MRI_ARGUS_MAIN 4.01 9-dec-2009 permanent
  • 11. N_RoW 1.0 9-dec-2009 permanent
  • 12. N11FlowQuant 1.0 9-dec-2009 permanent
  • 13. N_SpecCsi 1.0 9-dec-2009 permanent
  • 14. N_3D_PACE 1.0 9-dec-2009 permanent
  • 15. MRI_ARGUS_FLOW_ANALYSIS 4.02 9-dec-2009 permanent
  • 16. MR_SpecPostProc 1.0 9-dec-2009 permanent
  • 17. MR_BoldEva_MAIN 1.0 9-dec-2009 permanent
  • 18. N_PAT_Advanced 1.0 9-dec-2009 permanent
  • 19. N_AdvFunctNeuro 1.0 9-dec-2009 permanent
  • 20. MPPS_SUPPORT 1.0 9-dec-2009 permanent
  • 21. MR_3D_FMRI_INLINE 1.0 9-dec-2009 permanent
  • 22. MR_AutoAlign 1.0 9-dec-2009 permanent
  • 23. MR_Composing_Spine 1.0 9-dec-2009 permanent
  • 24. N_WholeBody 1.0 9-dec-2009 permanent
  • 25. N_Diffusion 1.0 9-dec-2009 permanent
  • 26. N_Perfusion 1.0 9-dec-2009 permanent
  • 27. MR_3D_FMRI_BASE 1.0 9-dec-2009 permanent
  • 28. N_TimApplication 1.0 9-dec-2009 permanent
  • 29. N_MatrixMode 1.0 9-dec-2009 permanent
  • 30. N11Adv3D 1.0 9-dec-2009 permanent
  • 31. SYNGO_GENERAL_LICENSE 43.1 9-dec-2009 permanent
  • 32. MR_DIS3D 1.0 9-dec-2009 permanent
  • 33. TQ_Gradients 1.0 9-dec-2009 permanent
  • 34. Tim_18_3T 1.0 9-dec-2009 permanent
  • 35. N_InlineComposing 1.0 9-dec-2009 permanent
  • 36. N_DiffusionTensorOffline 1.0 9-dec-2009 permanent
  • 37. N_DiffusionTensorImaging 1.0 9-dec-2009 permanent
  • 38. MR_SpineAutoAlign 1.0 9-dec-2009 permanent
  • 39. N_Stepping 1.0 9-dec-2009 permanent
  • 40. Tim_8_3T 1.0 9-dec-2009 permanent
  • 41. MR_Expert_i 1.0 9-dec-2009 permanent
  • 42. N_InlineDIS3D 1.0 8-dec-2009 permanent
  • 43. N_SWI 1.0 9-dec-2009 permanent
  • 44. N_BLADE 1.0 9-dec-2009 permanent
  • 45. MRI_CV_MAIN 1.1 9-dec-2009 permanent
  • 46. N_Dynamic3D 1.0 9-dec-2009 permanent
  • 47. N_IClass 1.0 9-dec-2009 permanent
  • 48. N_PhoenixZIP 1.0 9-dec-2009 permanent
  • 49. N_ParametricMap 1.0 9-dec-2009 permanent
  • 50. MR_AutoAlign_Head_LS 1.0 8-dec-2009 permanent
  • 51. MR_STEREOTACTIC_TSE 1.0 8-dec-2009 permanent
  • 52. MR_Support_i 1.0 7-oct-2010 permanent
  • 53. N_Spec_3DCSI 1.0 8-dec-2009 permanent
